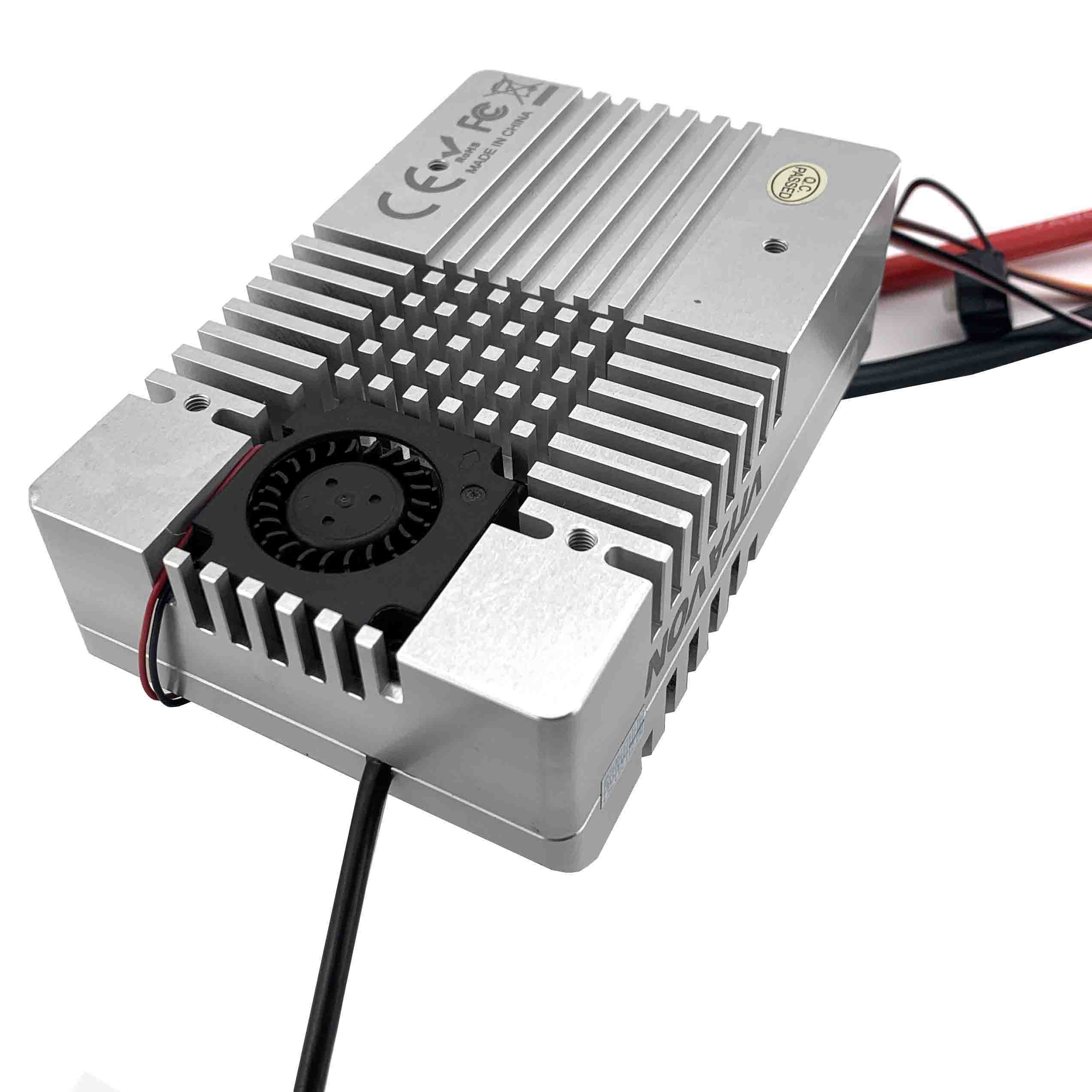

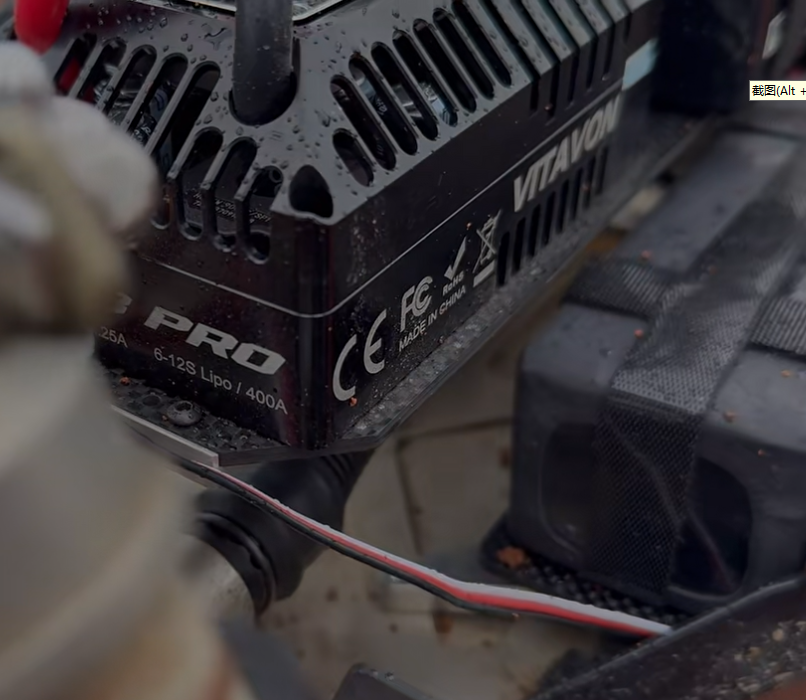

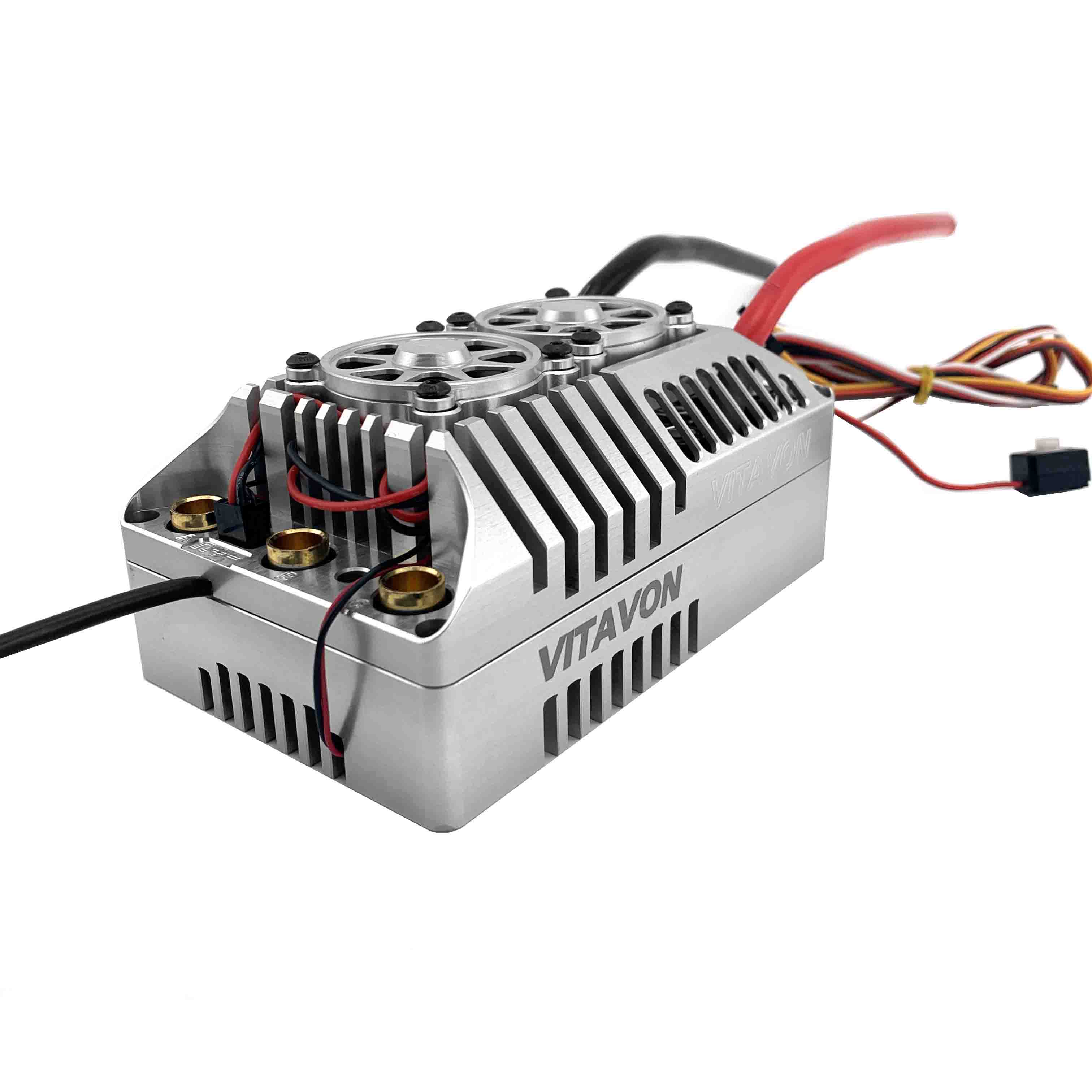

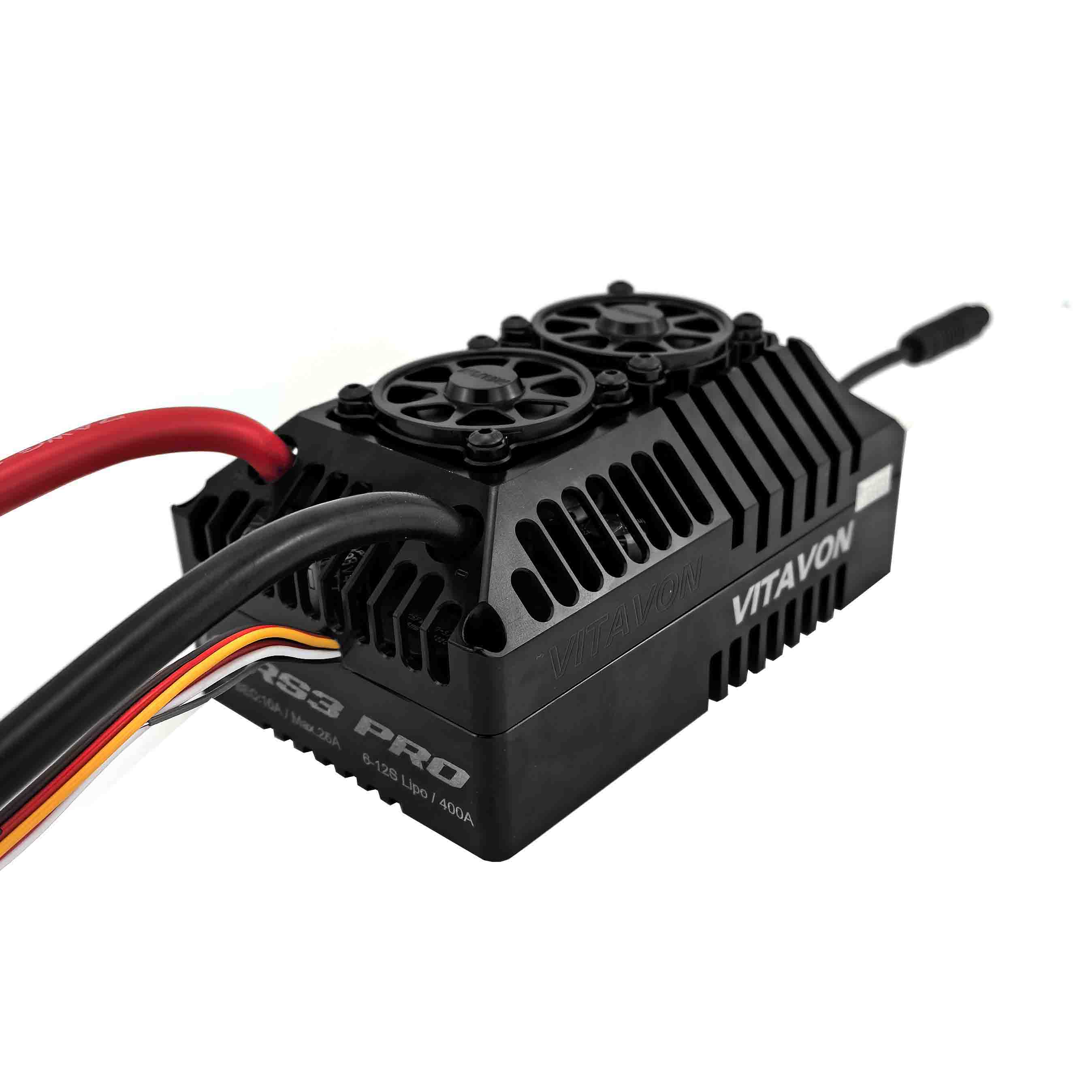

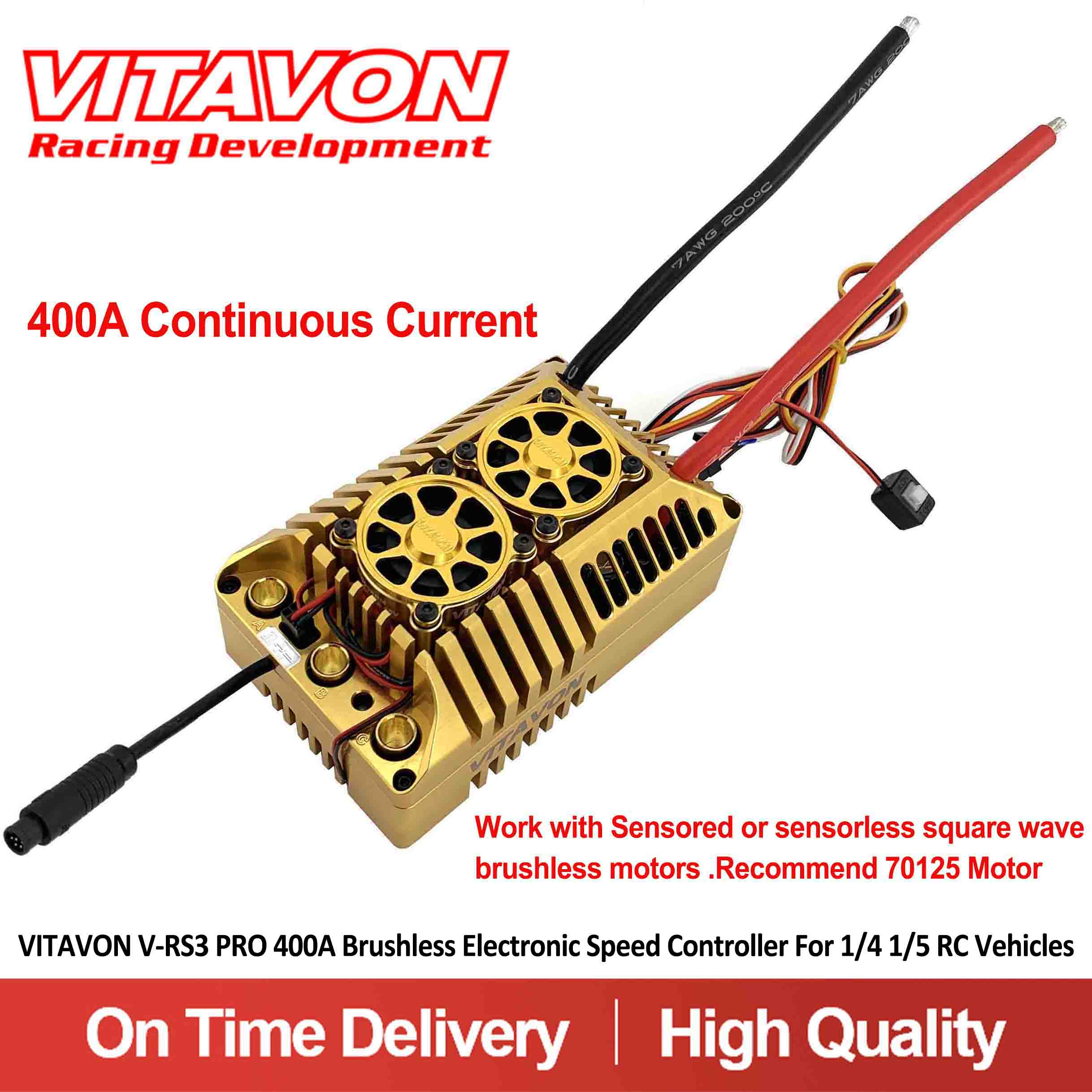

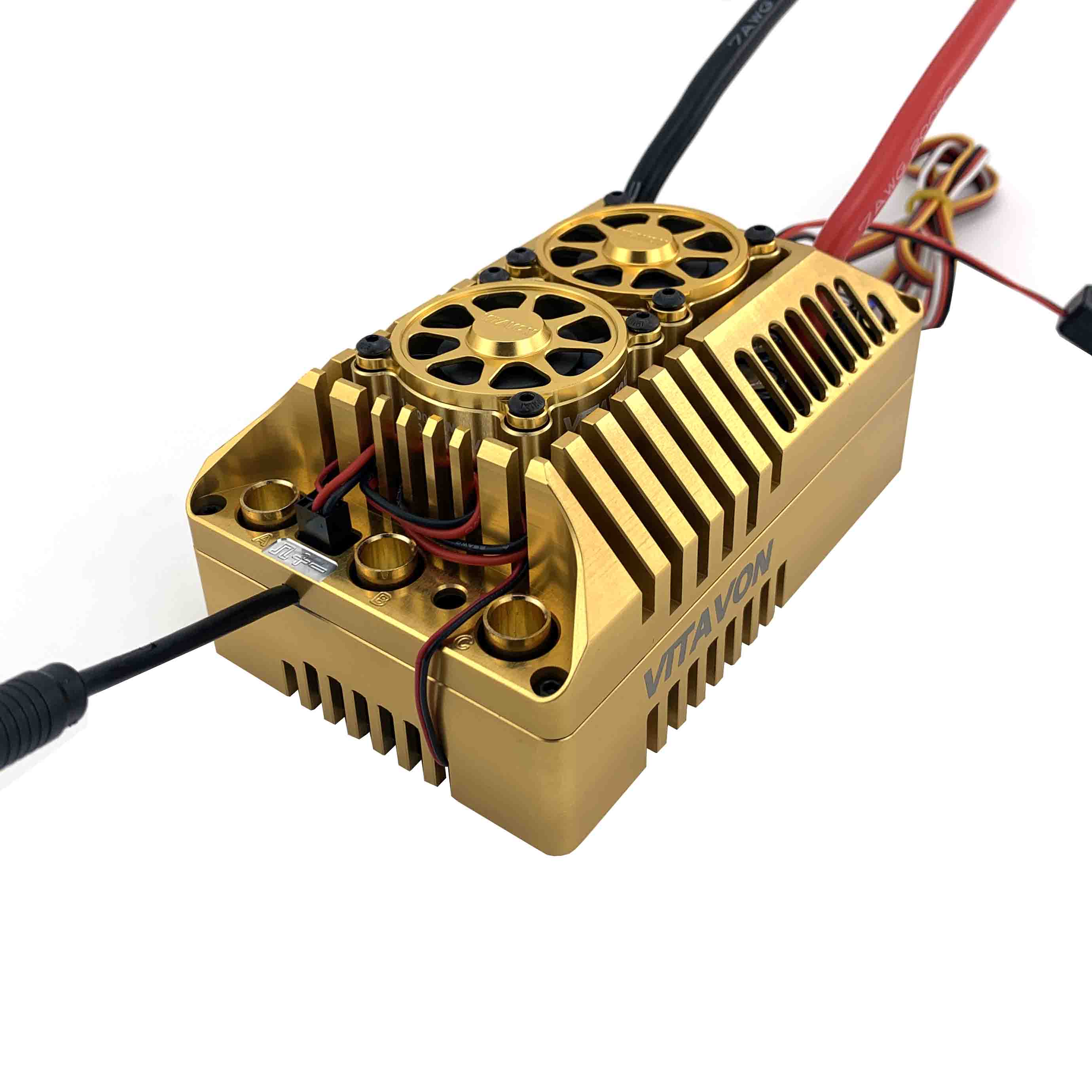

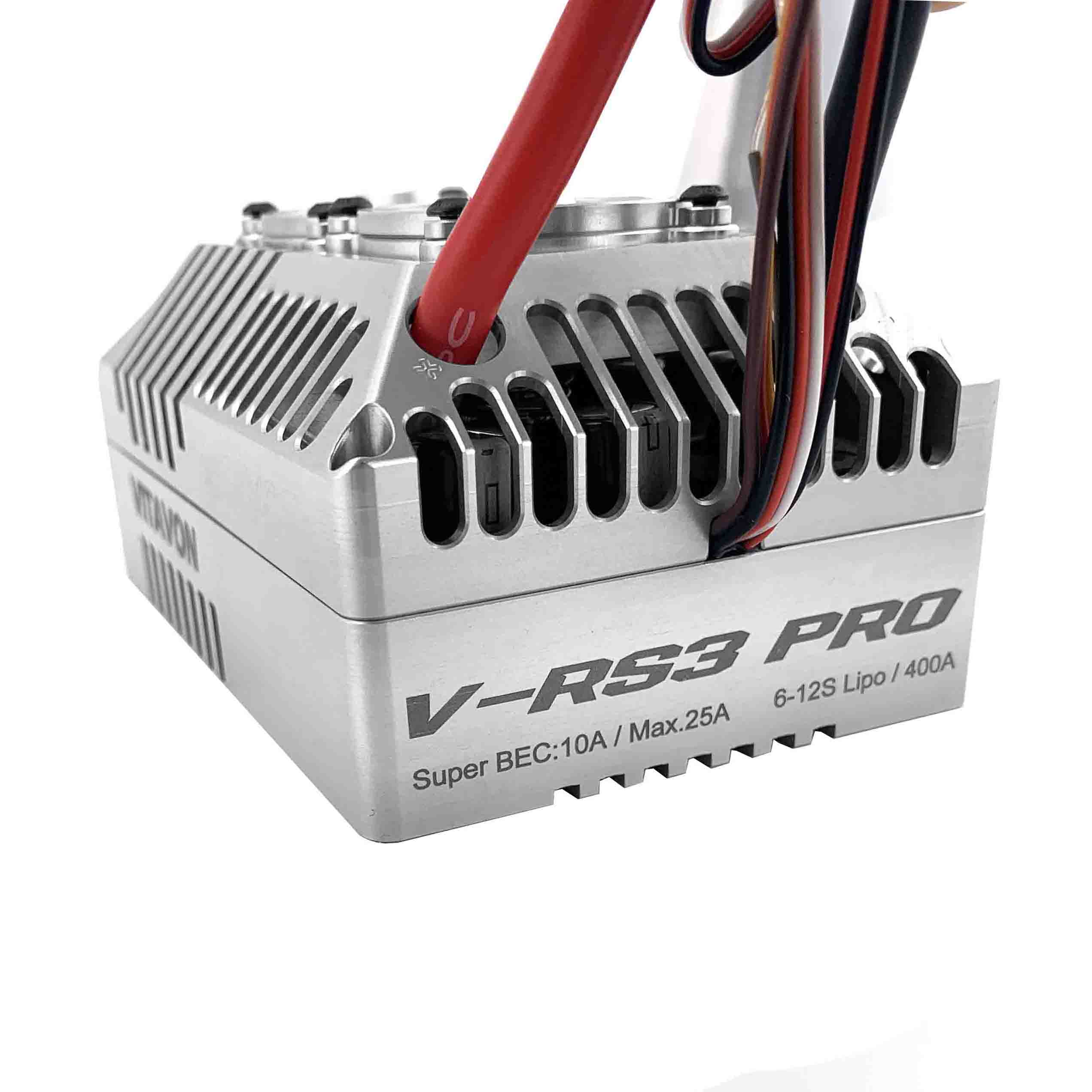

Product Name : VITAVON V-RS3 PRO 400A Brushless Electronic Speed Controller For 1/4 1/5 RC Vehicles
Brand : VITAVON

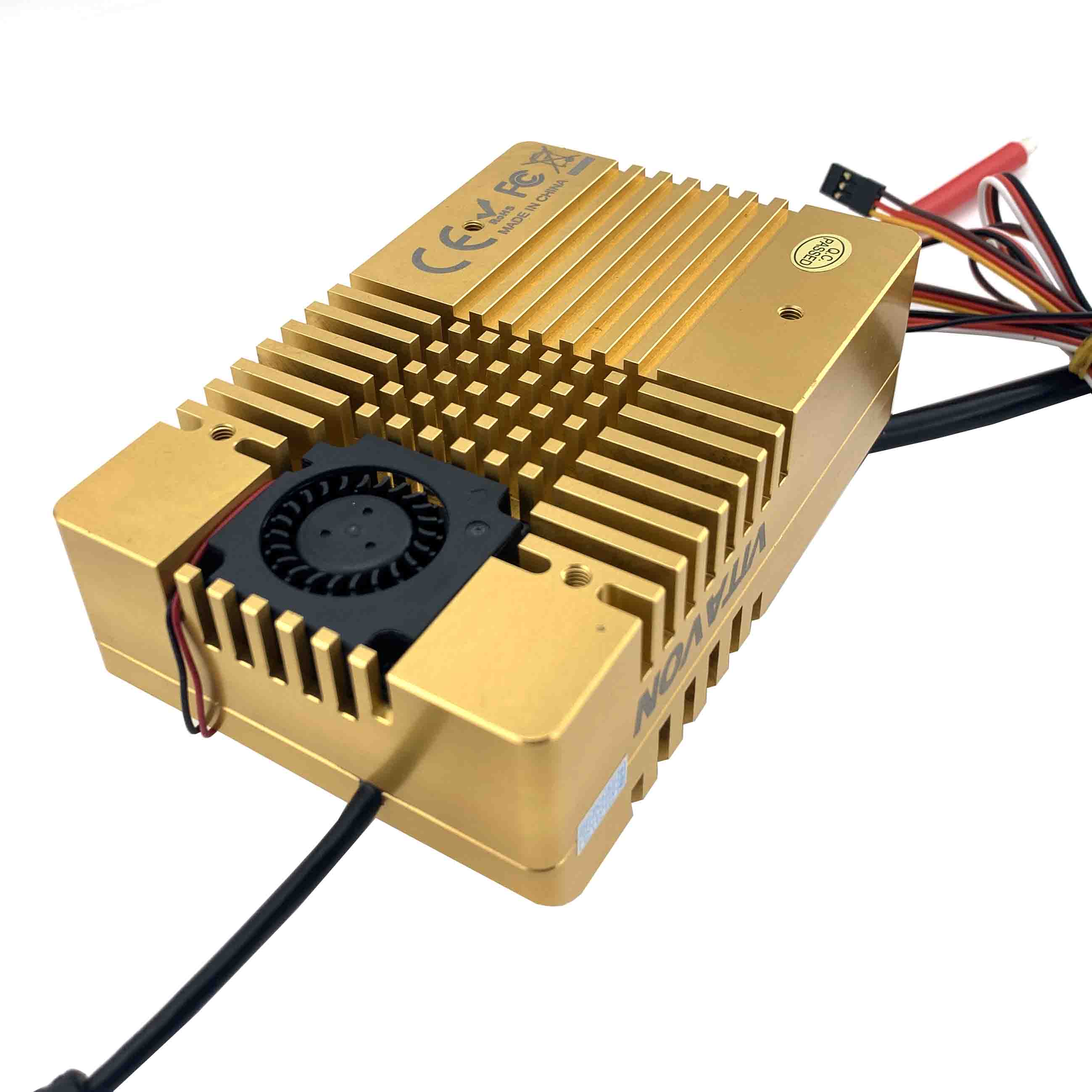

Color:Silver Black Gold

Includes:
(1) V-RS3 PRO ESC X1
(2) 40mm Fan X2
(3) 40mm fan cover X3
(4) User’s manual X1

ESC Features:
1. Meticulously proved commutation scheme, even in sensorless mode.
2. Active freewheeling technology can reduce MOS heating while avoiding excessive current pulses.
3. Current limiting in each PWM cycle reduces the impact of pulse current on the motor.
4. Dual smart fans for efficient heat dissipation. Fans stay quiet at low temperature.
5. Built-in Bluetooth connects Mobile APP for firmware upgrade and parameter setting.
6. Mobile APP data observation interface for viewing ESC recording data (static data) and real-time debugging data.
7. High-power DC/DC conversion circuit makes BEC a potent loading capacity.
8. Full protection: low voltage, over voltage, throttle loss, abnormal braking, over temperature etc.
9. Turbo timing available.
10. No need to buy additional modules, you can completely control the ESC.
11. Supporting X.BUS protocol, real-time control of ESC and reading of operation data through Bus. It can be used for robot control or other automated programming control.

ESC Specifications:
–Continuous Current: 400A
–Motor Type:Sensored or sensorless square wave brushless motors
–Applications: 1. 1/4 and 1/5 vehicles
–LiPo Cells: 6-12S LiPo
–BEC Output: 6V/7.4V/8.4V, it can be switched through the mobile APP.
–Current: 10A continuously, 25A short-term.
–Cooling Fan: 1. The fan powered by BEC
2. When a short-circuit current occurs to the fan,
the power will be cut off. Power recovered in 1 second.

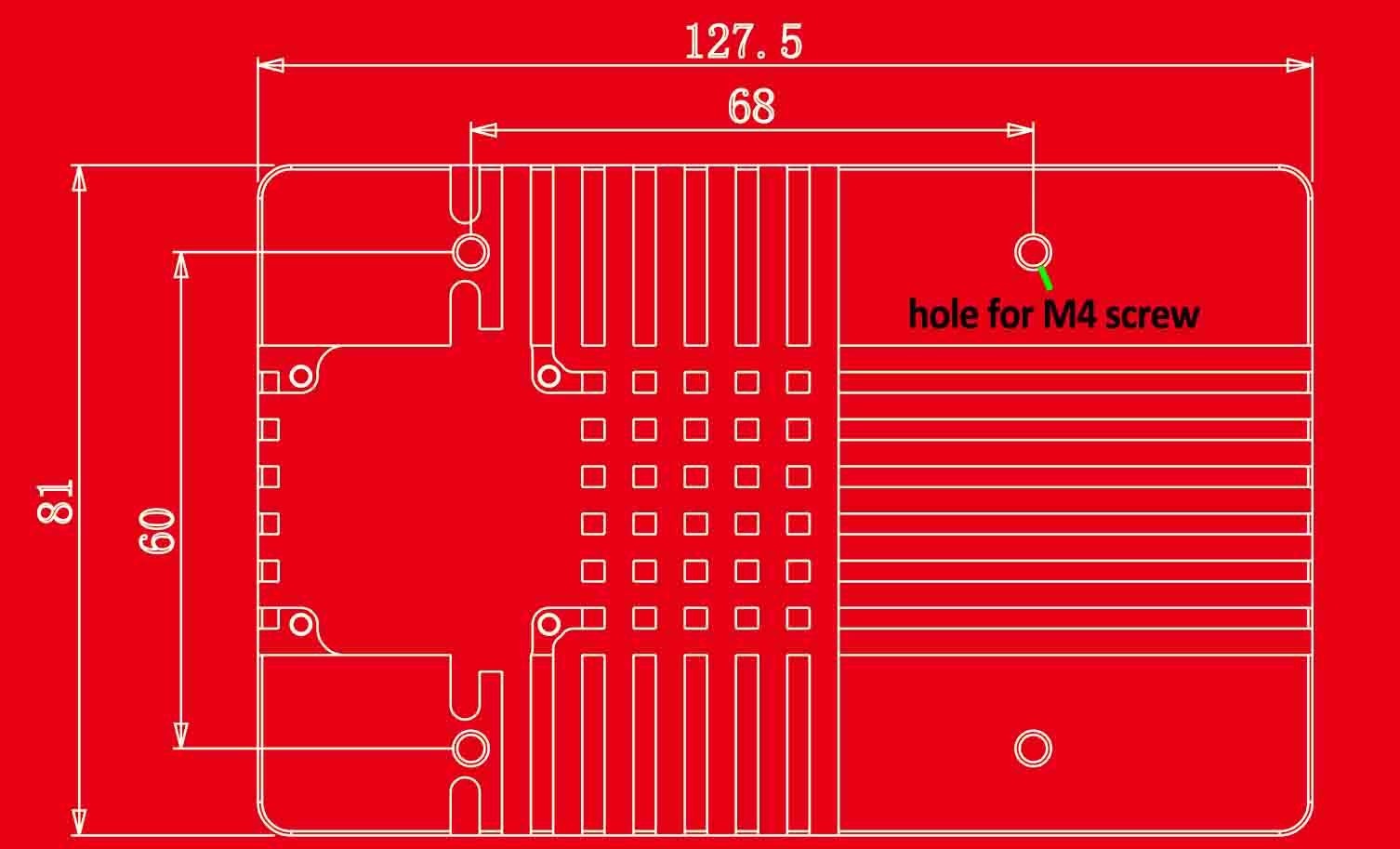

–Size: 127.5(L) x 81(W) x 60.7(H)mm
–Weight: 765g (Included wires & connectors)
Programming Method: iOS or Android smart phone (installed with the HW Link App)

Please check out below video:

https://youtu.be/XvIFHNZGSYk
