VITAVON CNC Alu7075 150kg V2 15T Brushless Digtal Servo For 1/5 Scale Vehicles - Vitavon
Shipping: DHL shipping available- Shipping time: 3-10 business days
- Handling time: Ships within 3 business days after receiving cleared payment
- Payments:
Shipping: DHL shipping available
Shipping time: 3-10 business days
Handling time: Ships within 3 business days after receiving cleared payment
Payments:
| Non-Domestic Product: | New: A brand-new, unused, unopened, undamaged item (including handmade items). See the seller’s | Non-Domestic Product: | No |
| Custom Bundle: | No | Color: | Silver |
| MPN | Does Not Apply | Bundle Listing: | No |
| Modified Item: | No | Brand: | VITAVON |
| Type: | v2 15T servo | Compatible Vehicle Type: | Buggy, Crawler, Drift Car, Scale, Short Course Truck |
| Compatible Fuel Type: | Electric | Country/Region of Manufacture: | China |
| Compatible Scale: | 1:5 | UPC: | Does not apply |

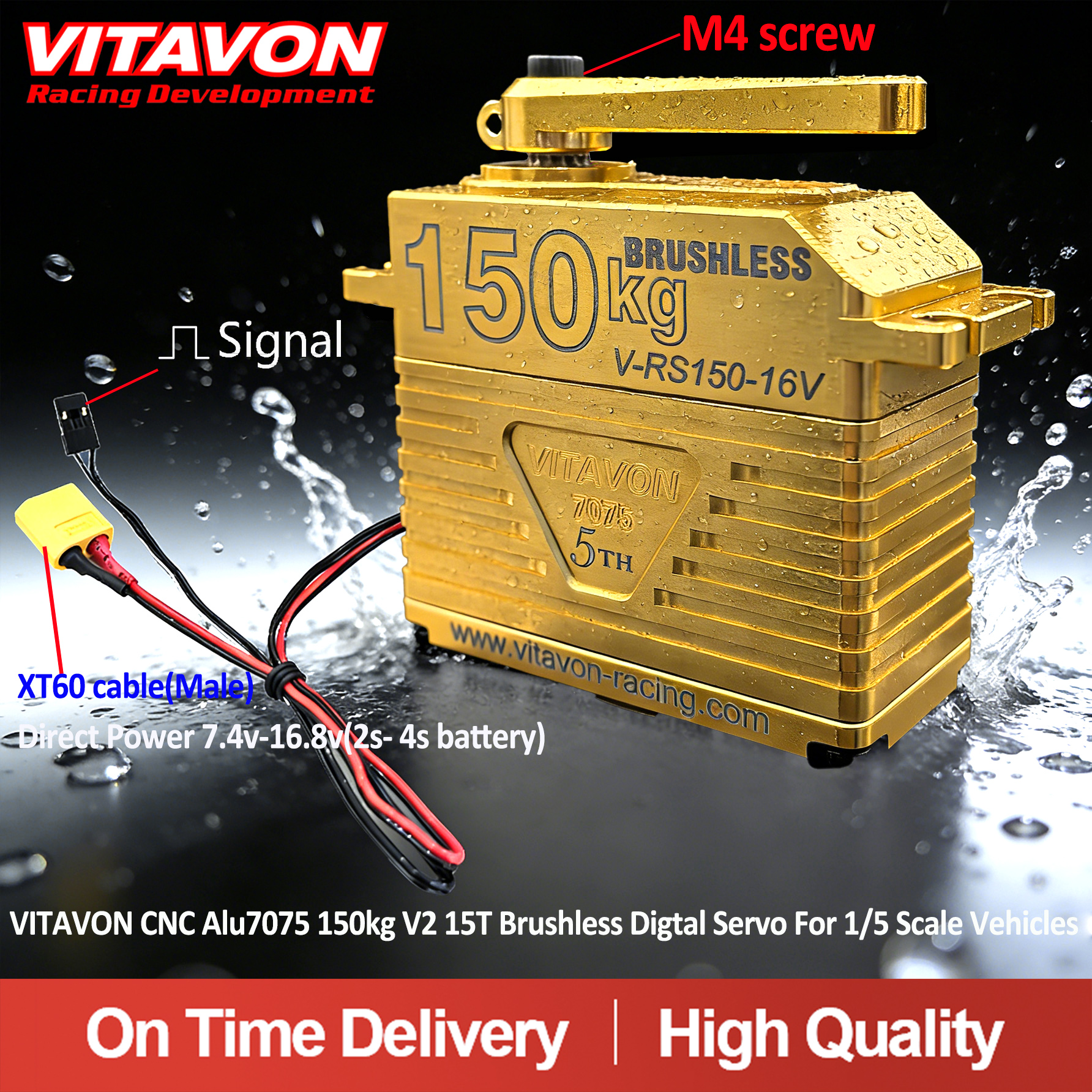

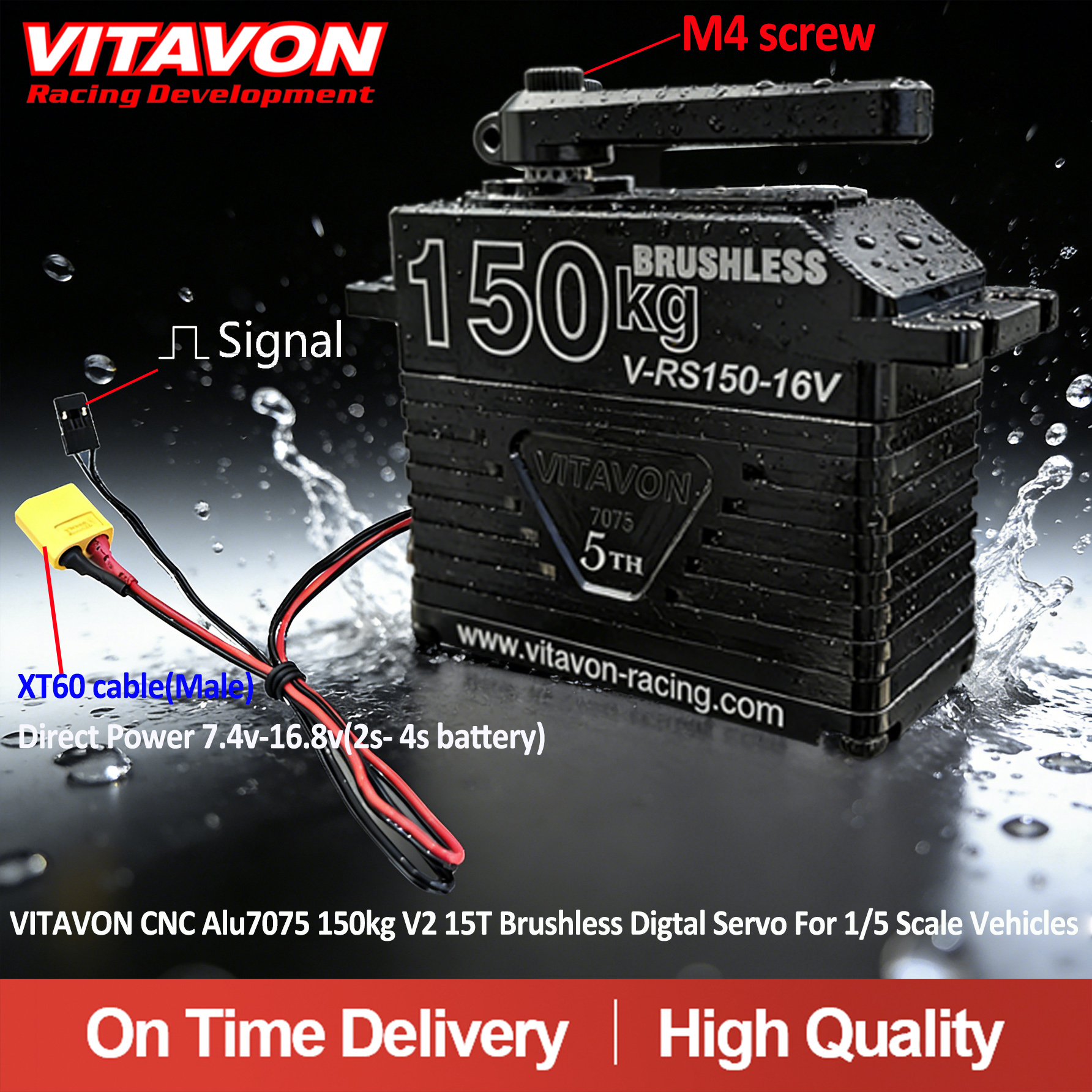

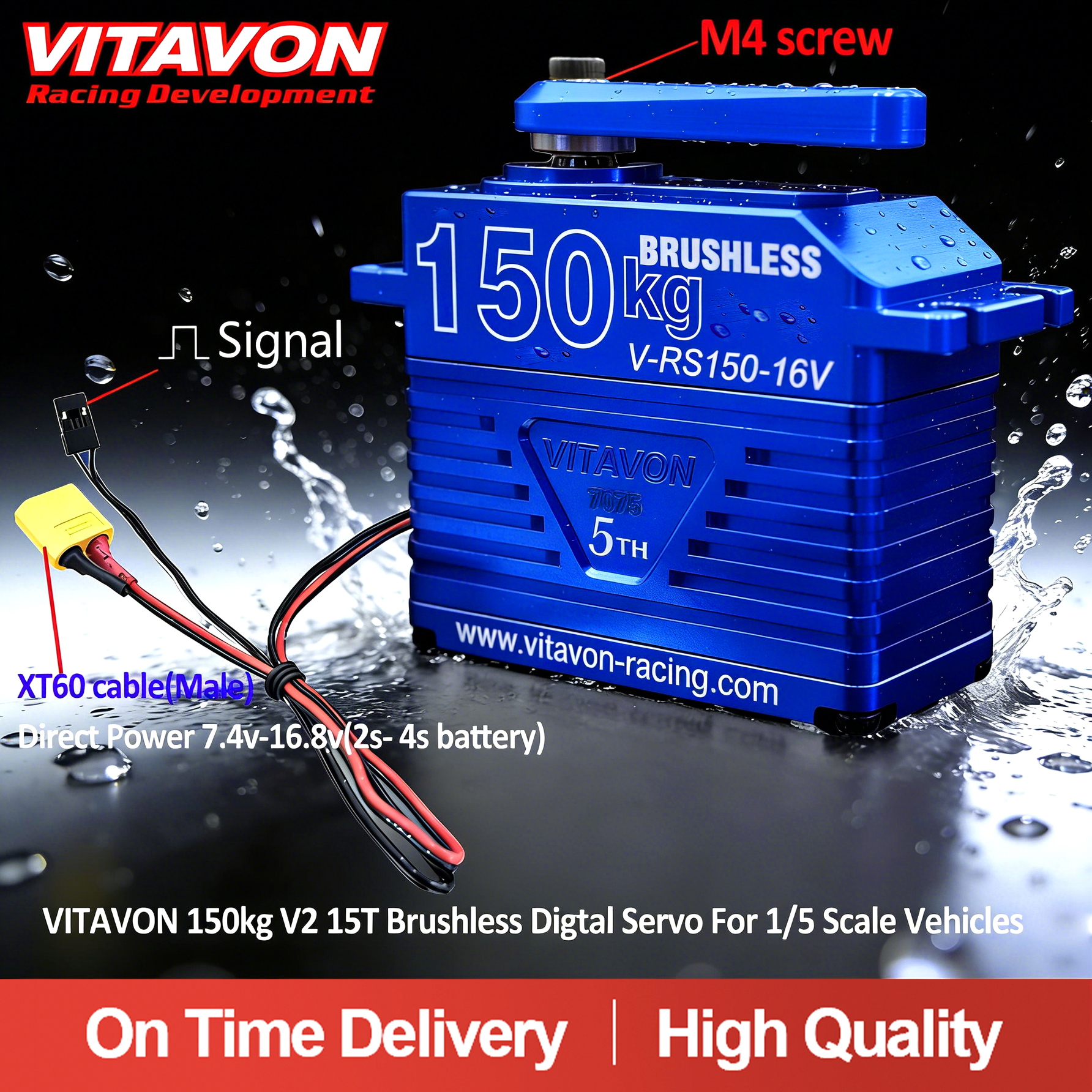

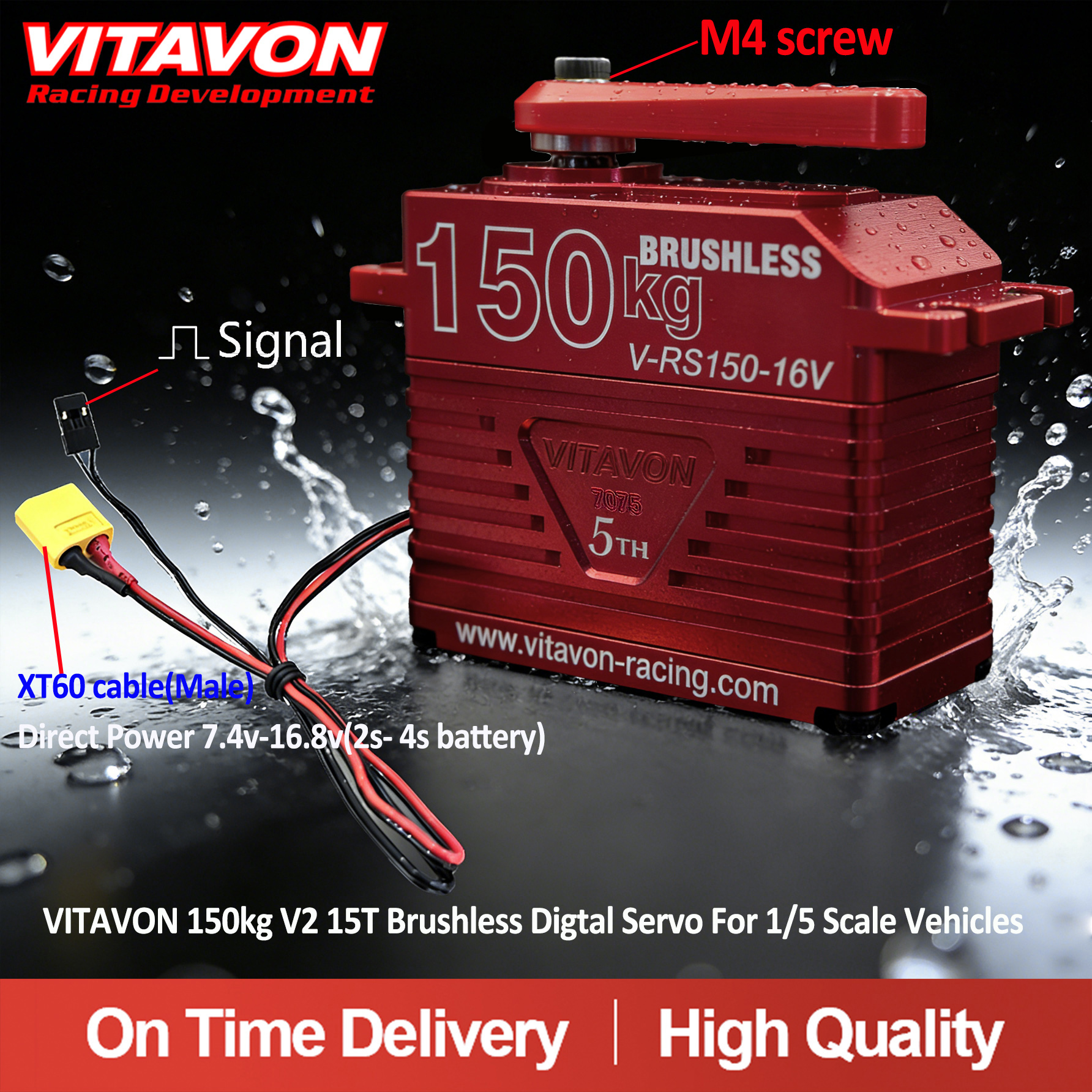

Product Name:VITAVON CNC Alu7075 150kg V2 15T Brushless Digtal Servo For 1/5 Scale Vehicles
Brand:VITAVON
Color:Silver Black Gold
Compared with our G1 servo, the G2 (V2 version) comes with several significant upgrades, as detailed below:
1.Voltage Range Upgrade: The V2 version supports a wider voltage range of 7.4V – 16.8V, replacing the G1’s 7.4V – 12.4V, which enables faster operating speed.
2.Power Supply Requirement: A separate 7.4V-16.8V 4S battery is required (instead of the 3S battery for G1) to deliver more power. This is particularly important because if the servo draws power directly from the ESC, voltage drops may occur, leading to unstable truck operation.
3.Mounting Hole Enhancement: M4 mounting holes are adopted instead of the G1’s M3 holes. This allows the use of M4 screws to secure the servo horn, effectively preventing the screws from loosening easily.
4.Housing Material Upgrade: The servo housing is made of 7075 aluminum alloy, replacing the 6061 aluminum alloy used in the G1 servo for improved durability and strength.

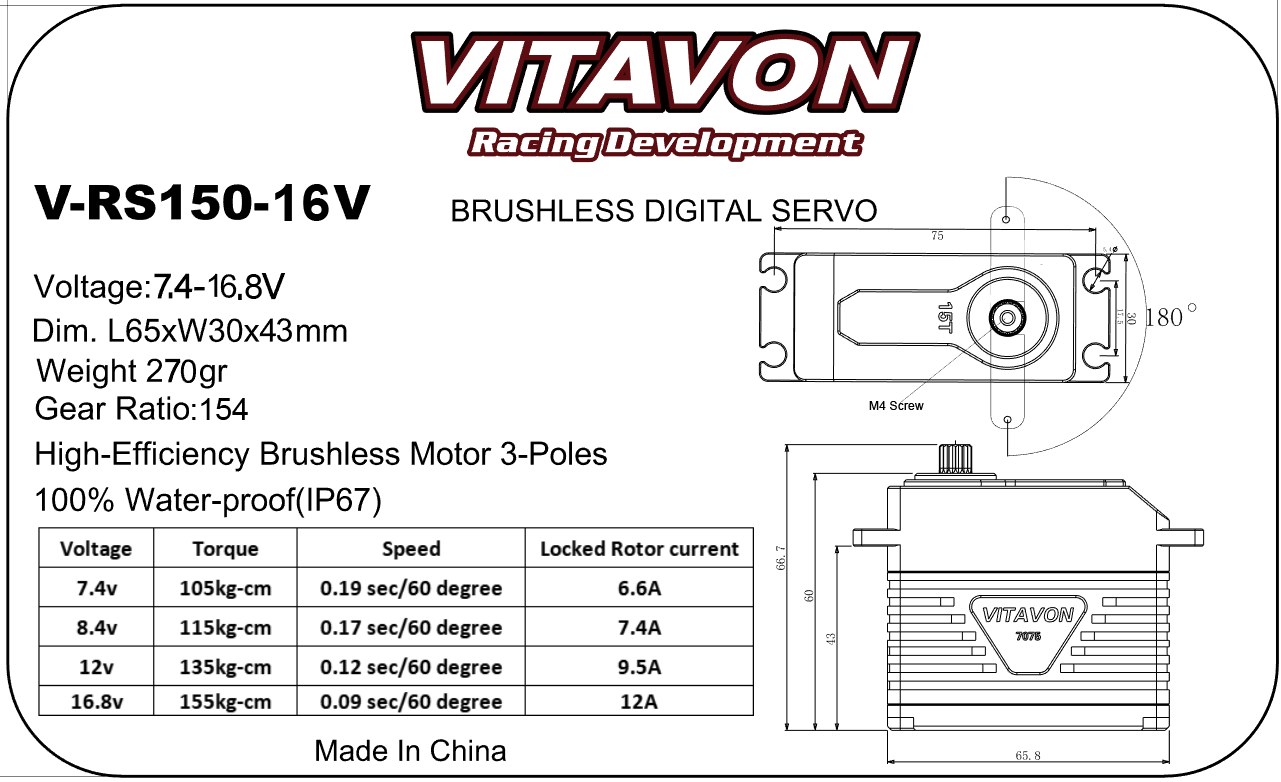

Specifications:
Scale: 1:5
Voltage Range:7.4V – 16.8V
Motor Type: Brushless
Output Shaft: 15 Tooth
Gears: Stainless steel
Gear Ratio:154
Weight: 270g
Dimensions: 2.56×1.18×1.69in (65x30x43mm)
Height (Base to Mount): 43mm
Voltage Torque Speed Locked rotor current
7.4v 105 kg-cm 0.19 sec/60 degree 6.6A
8.4V 115 kg-cm 0.17sec/60degree 7.4A
12V 135kg-cm 0.12sec/60degree 9.5A
16.8V 155kg-cm 0.09sec/60degree 12A
Includes:
Brushless Servo+15T servo horn
